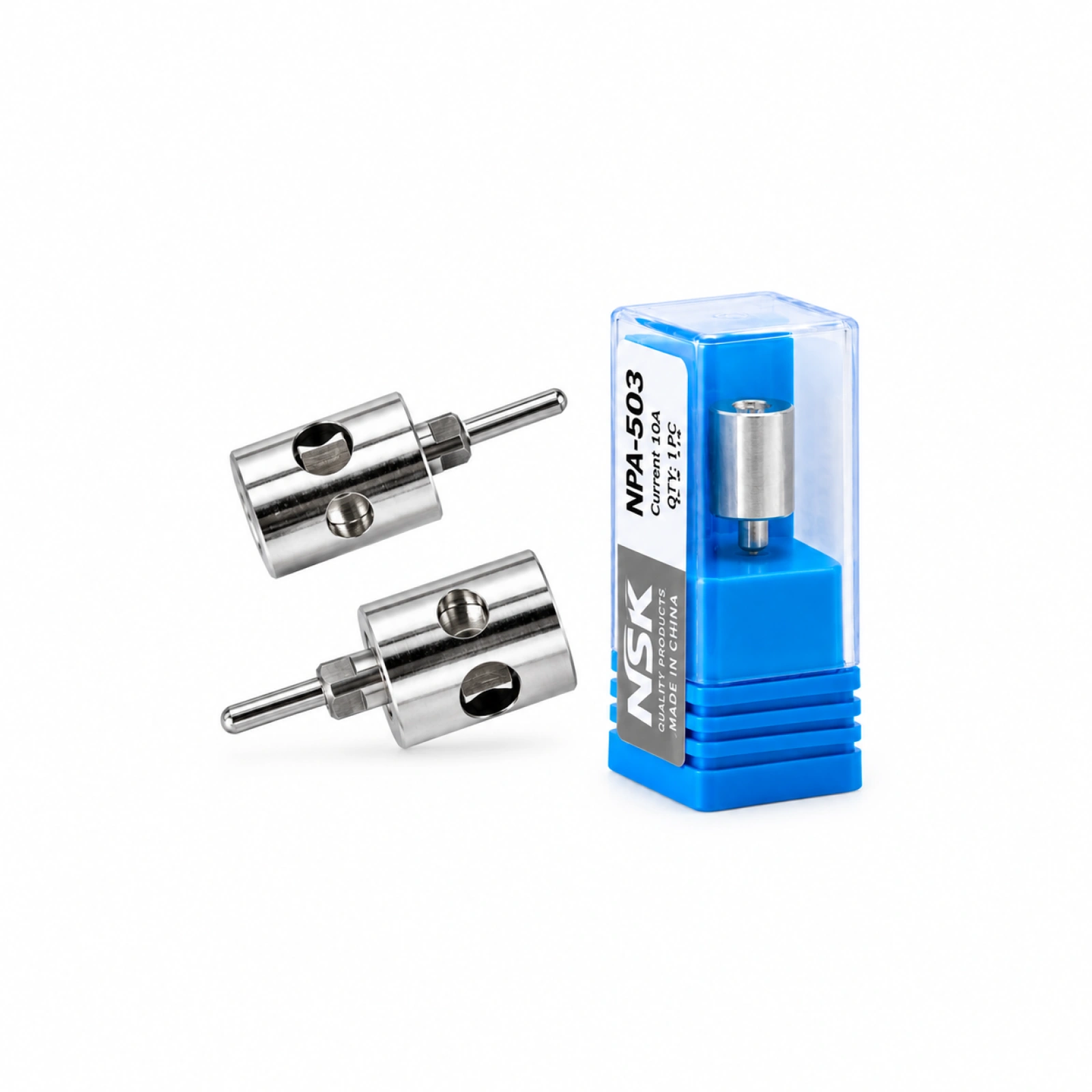

NSK Replacement Turbine Cartridges (also known as handpiece rotors or airotor cartridges) are the central mechanical component housed inside the head of NSK high-speed dental handpiecesNSK replacement turbine cartridges (rotors) are the central mechanical component inside high-speed dental handpieces, responsible for spinning the bur at speeds .

Key Technical Specifications

Bearings: Available in stainless steel or ceramic. Ceramic bearings offer higher durability, heat resistance, and lower friction.

Chuck Mechanism: Available in Push-Button (quick, tool-less bur release) or Wrench/Key Type (manual tightening via handpiece key).

Operating Air Pressure: Typically functions best between 2.0 to 2.5 bar (0.20–0.25 MPa).

Speed Range: Approximately 300,000 to 450,000 RPM depending on the model and air pressure.

Common Model Compatibility

Pana-Max & Pana-Max2: Standard/torque push-button cartridges (e.g., PAX2-SU03).

Pana Air Series: Standard wrench/key and push-button types (e.g., NPA-S03, NPA-T03, NPA-SU03).

S-Max & Ti-Max Series: Premium fiber-optic/non-optic high-speed turbines (e.g., SX-MU03, TIX-SU03).

Primary Functions & Features

Precision Balance: Dynamically balanced rotors reduce vibration and noise, improving operational precision and practitioner comfort.

Sterilization Compatibility: Designed to withstand repeated autoclavable sterilization cycles (up to 135°C / 275°F).

Easy Replacement: Allows direct, cost-effective in-office repair of worn-out, noisy, or stalling handpiece turbines without replacing the entire handpiece casing.
