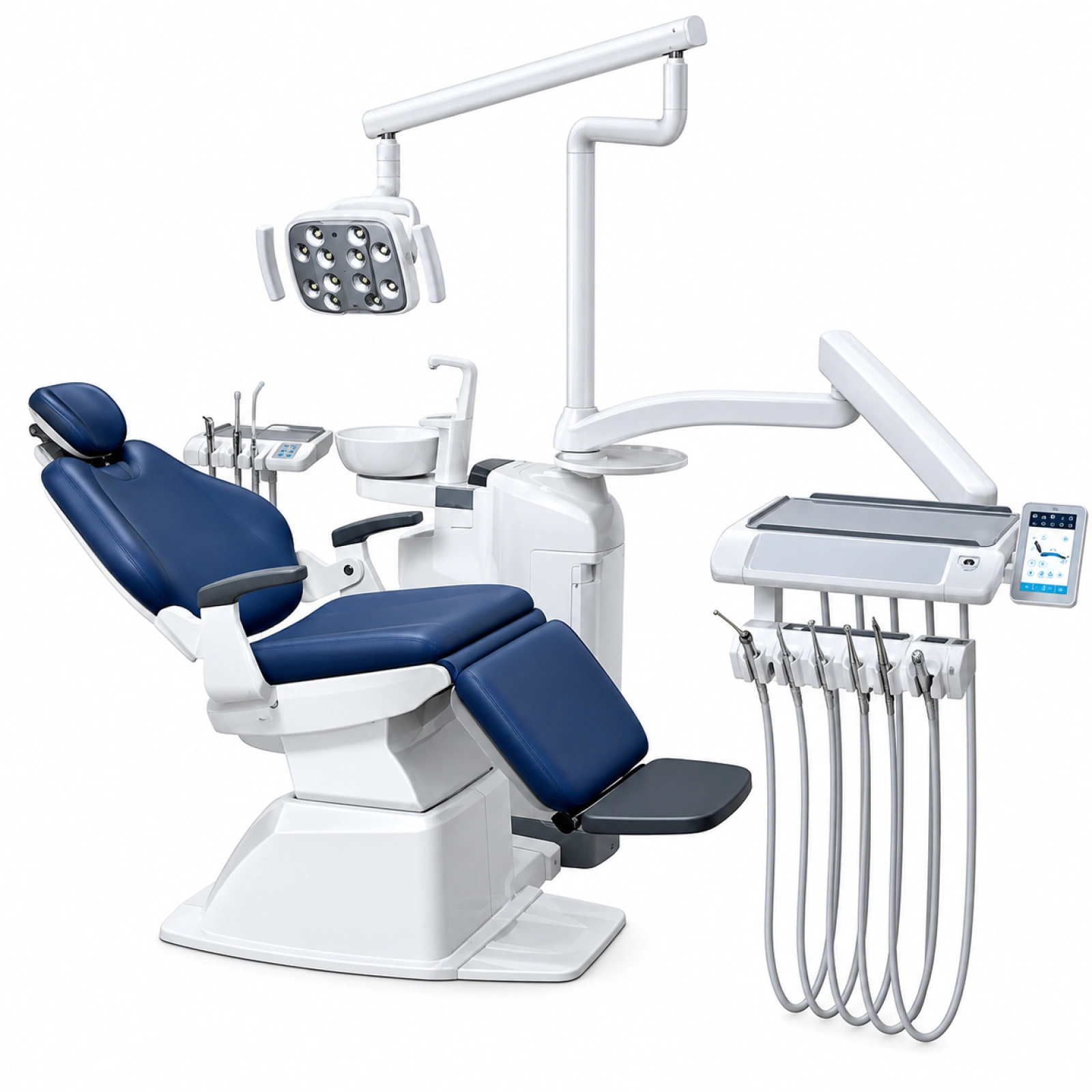

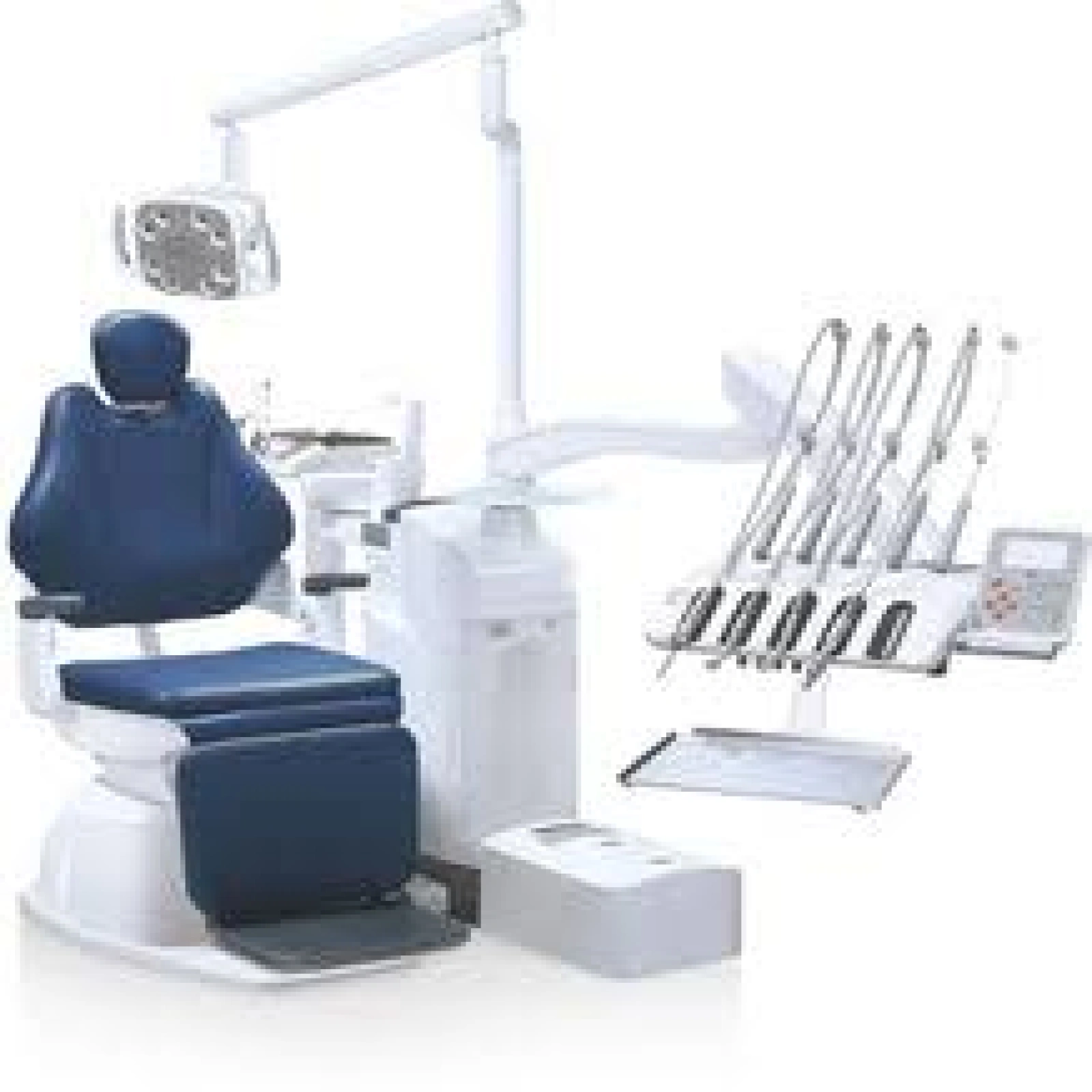

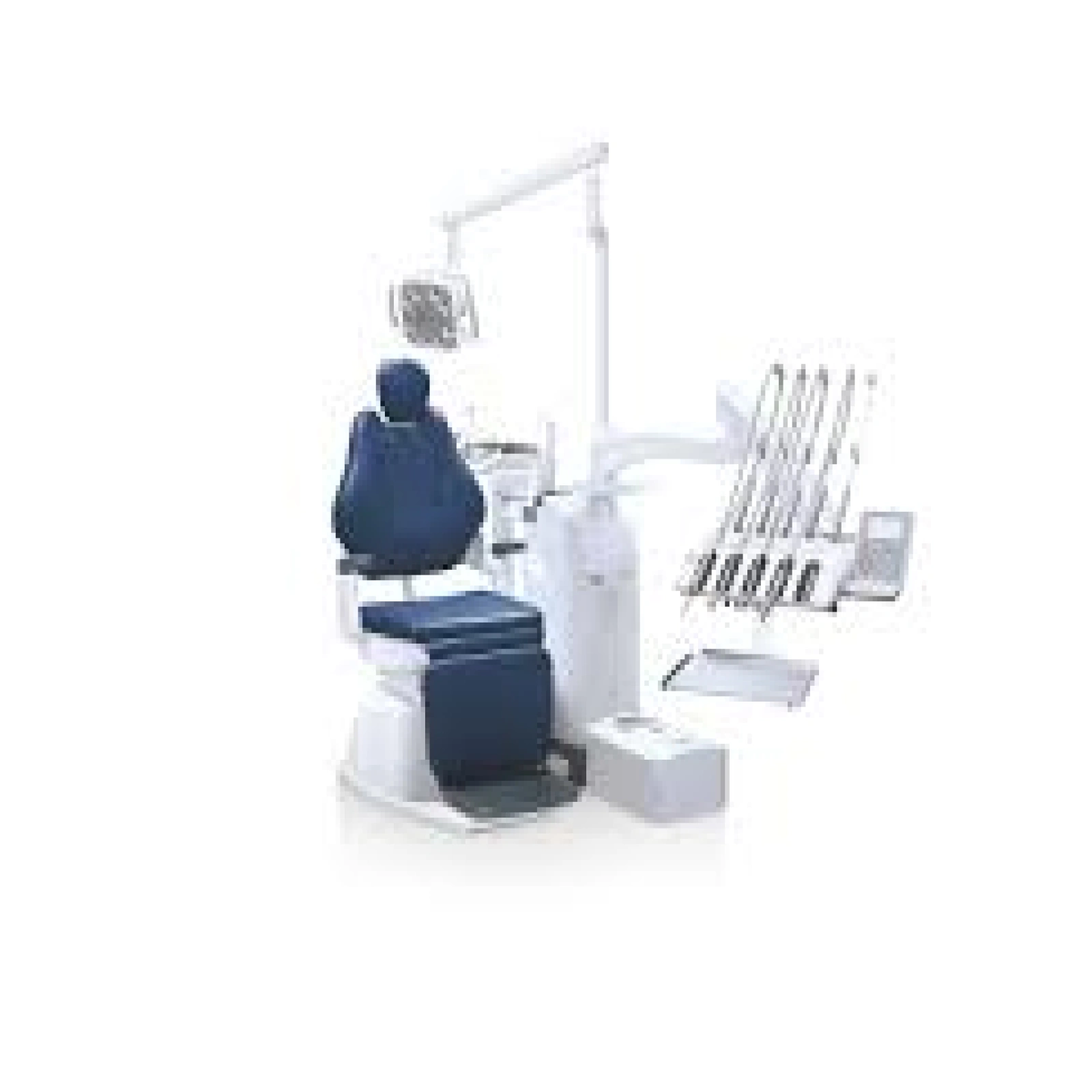

ZIANN Dental Unit ZA-208Q8

৳ 590,000.00

Category: Dental Unit

Brand: ZIANN

Code: P000008

Best: Yes

Buy Now

Order Whatsapp Call for Order

Description

Equipment Breakdown and Technical Specifications

This integrated dental unit combines patient comfort with precise tool delivery. Below is the detailed breakdown of its engineering and functional modules.

1. Patient Chair Module

Tri-Fold Articulation: Features a specialized breakdown knee-break (tri-fold) design. This allows the leg rest to fold completely down to 90 degrees, making entry and exit exceptionally easy for elderly, disabled, or pediatric patients.
Ergonomic Upholstery: Structured with high-density, seamless polyurethane leather that is completely resistant to chemical disinfectants.

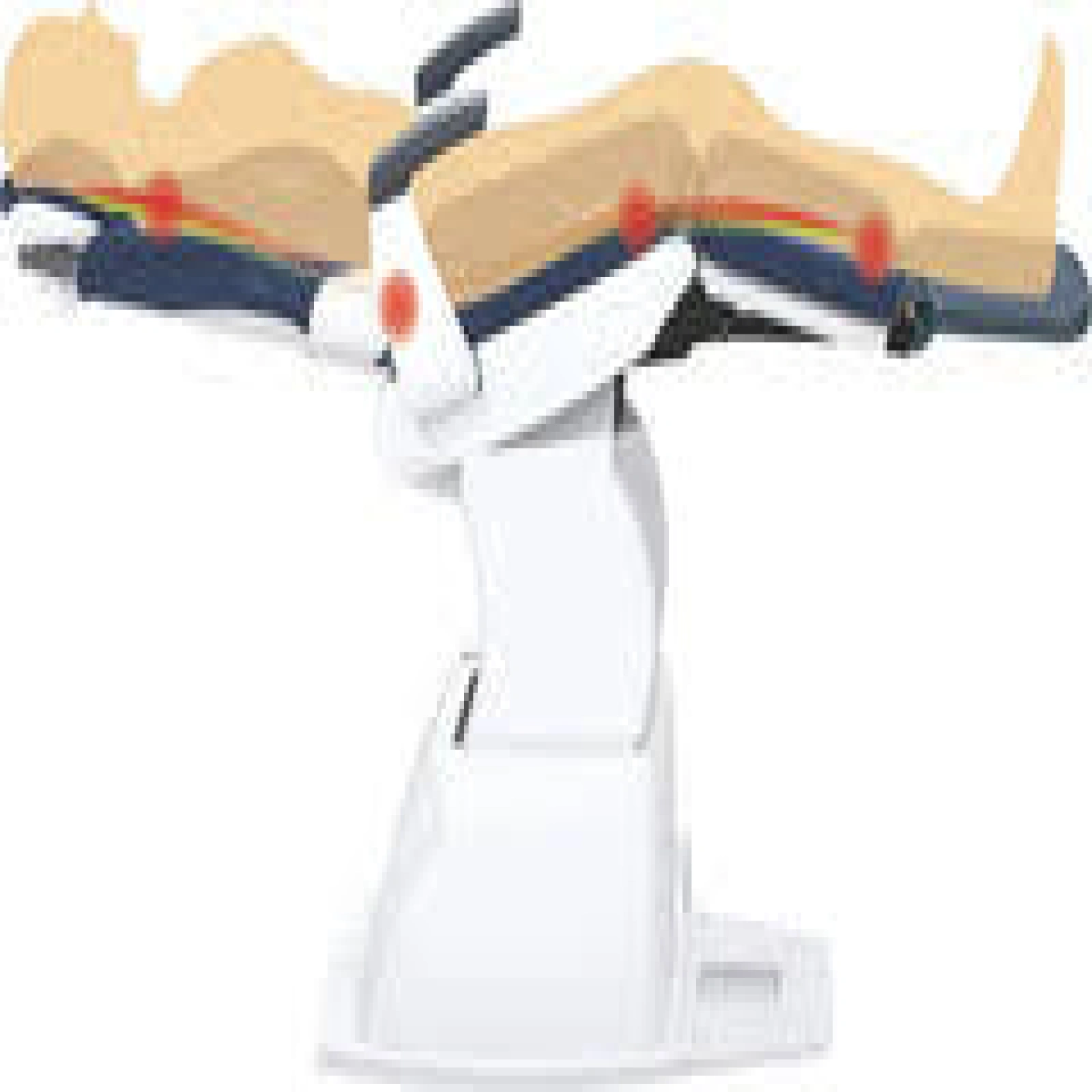

Movement System: Driven by silent, low-voltage DC motors with a lifting capacity up to 200kg. Includes synchronized backrest and seat tilting to prevent the "pulling" sensation on the patient's back.
Double-Articulating Headrest: Adjusts seamlessly in height and angle to support the occipital bone, accommodating both tall adults and small children.

2. Dentist Delivery System (Down-Mounted)

Whip-Arm Design: Employs a hanging hose (down-mounted) configurations for up to 5 instrument lines.
Instrument Array: Includes slots for a 3-way air/water syringe, two high-speed fiber-optic turbine lines, one low-speed air motor line, and an integrated piezo ultrasonic scaler.
Smart Touch Panel: Built-in digital control pad manages chair positioning (including presets like exit, entry, and trendelenburg), water heating for the cup filler, and light intensity.
Air/Water Control: Features an underlying master pneumatic switch and individual adjustment valves for precise water coolant control per handpiece.

3. Assistant & Water Unit (Cuspidor)

Rotatable Spittoon: Features a 180-degree swiveling ceramic or glass cuspidor bowl for easy patient access and effortless cleaning.
Suction Architecture: Separated high-vacuum (HVE) and low-vacuum (saliva ejector) lines equipped with integrated solids filters to protect clinic plumbing.
Purified Water System: Dual-bottle configuration allows seamless switching between municipal tap water and a distilled water disinfection system for handpiece coolant lines.

4. Overhead Operating Light

LED Multi-Lens Engine: Employs an array of shadowless LED bulbs yielding an adjustable lux range from 8,000 to over 30,000 Lux.
Color Temperature Management: Yellow/warm light filter mode prevents the premature curing of composite resin materials during restoration work.
Sensor Activation: Equipped with an infrared proximity sensor for hands-free on/off and dimming controls to maintain strict hygiene.

Facility & Installation Prerequisites

To install this unit safely into a dental operatory, the floor utility box (umbilical connection point) must be pre-configured with the following utilities:

Power Supply: Dedicated AC 220V–240V / 50Hz electrical outlet with independent grounding lines.
Air Source: Clean, dry, oil-free compressed air line regulated to 0.55 – 0.80 MPa.
Water Source: Clean water connection regulated to 0.20 – 0.40 MPa.
Drainage: A minimum 1.5 to 2-inch gravity-fed drain pipe angled downwards toward the central clinic vacuum/waste system.
