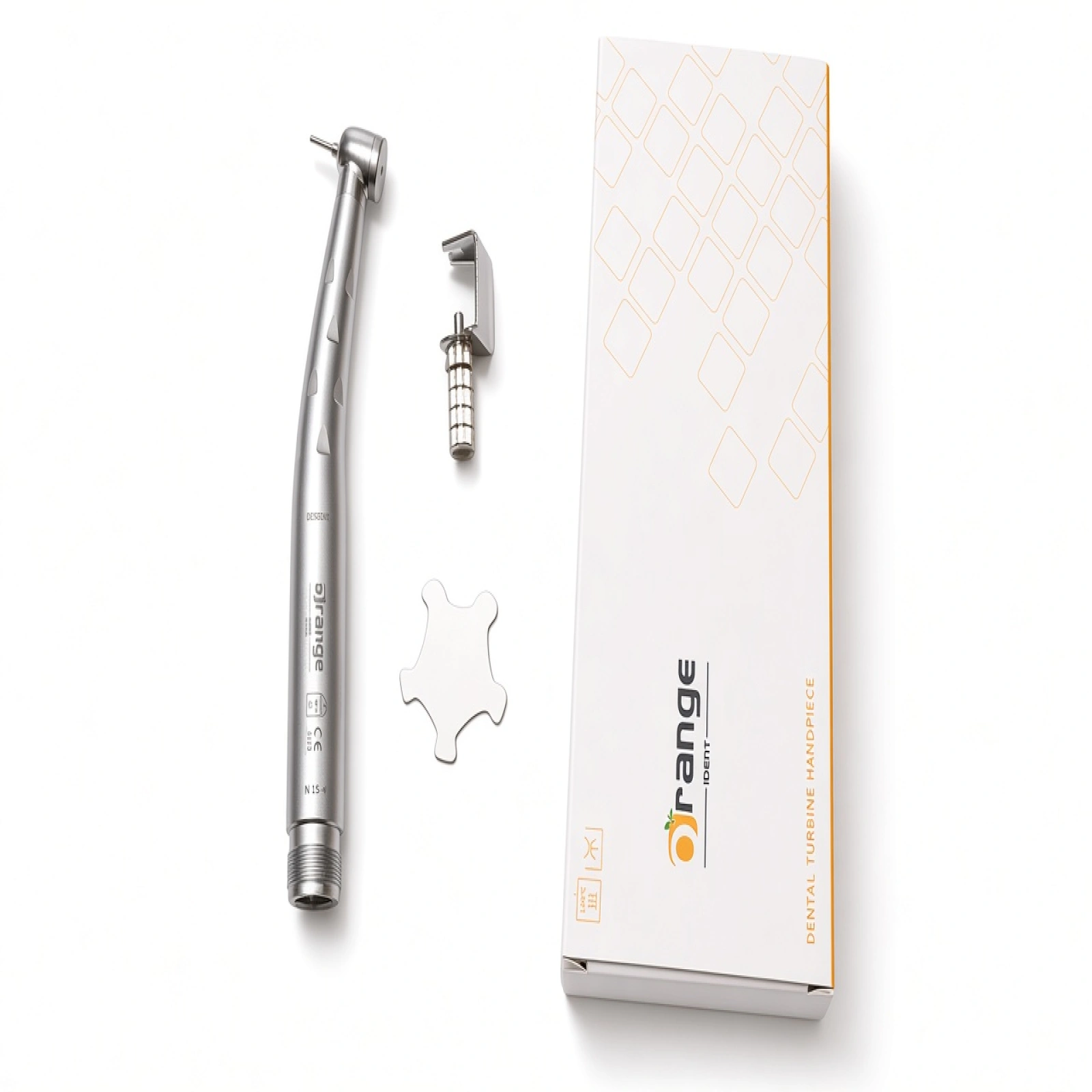

An Orange Standard Head Wrench-Type High-Speed Handpiece (often designated as an Orange Series Airotor) is a conventional air-driven dental turbine. It uses a manual key or wrench mechanism to secure and change burs, as opposed to modern push-button systems.

Key Specifications & Features

Wrench/Key Latching Chuck: Burs are tightened and loosened using a dedicated metal chuck key, offering a strong, mechanical grip that minimizes bur slip during long procedures.

Standard Head Size: Features a standard-sized turbine head that delivers a balance of high torque and cutting power suitable for heavy tooth sectioning and crown preparations.

Speed Range: Operates at high speeds between 300,000 to 400,000 RPM at standard operating air pressure

Air/Water Cooling: Equipped with external or single-port internal water spray channels to cool the diamond bur and prevent thermal trauma to the pulp.

Tubing Compatibility: Commonly built with standard 2-hole (Borden) or 4-hole (Midwest) air line connections.

Autoclavable Body: Constructed from chrome-plated brass or stainless steel, designed to withstand routine autoclaving temperatures up to $135^\circ\text{C}$.

Clinical Applications

Gross enamel and dentin reduction during cavity preparations.

Sectioning old amalgam, composite restorations, or crowns.

General operative dentistry where budget-friendly, high-torque manual handpieces are preferred over push-button alternatives.

MADE IN CHINA .
