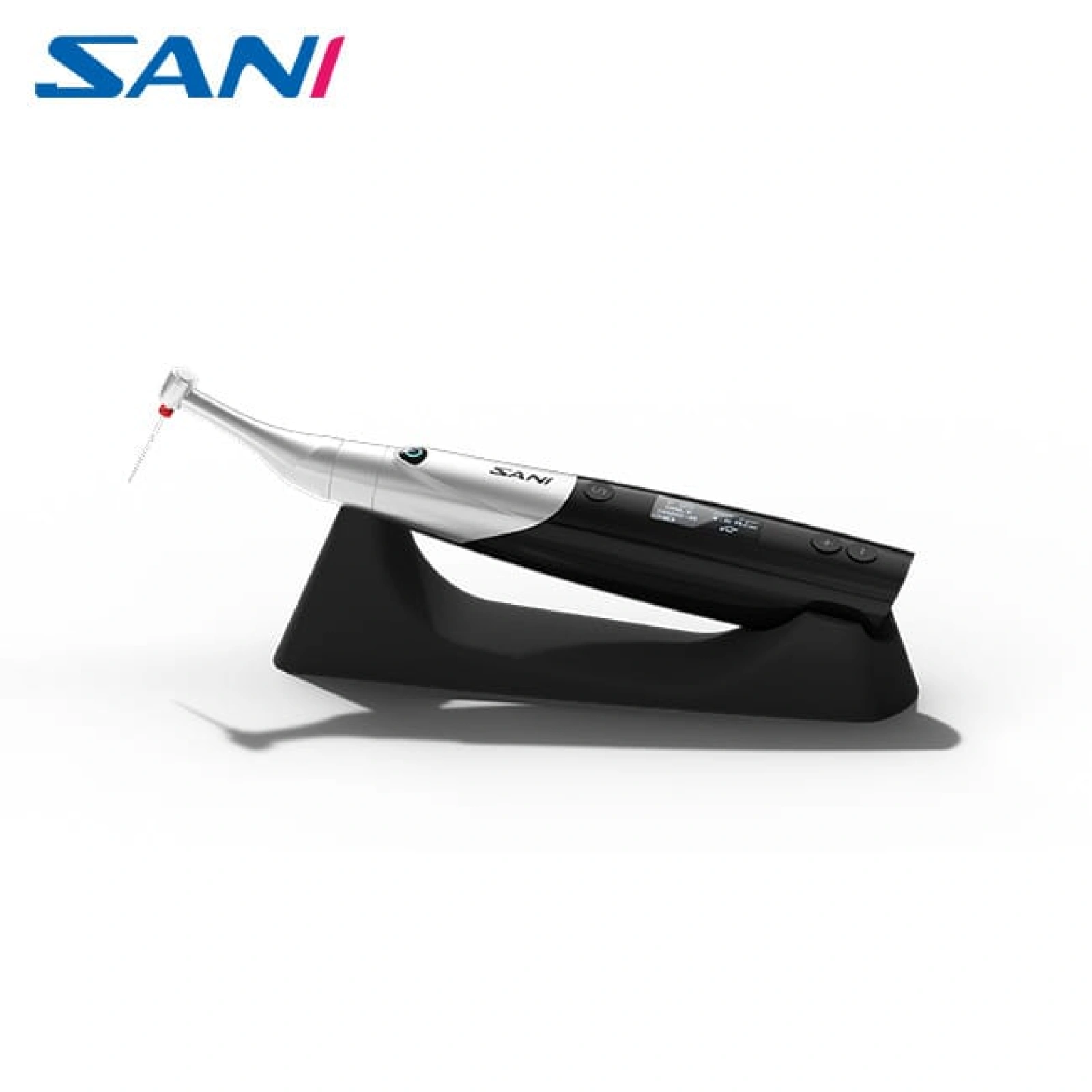

Sani Endo Motor Edo Max With 6.1 Handpieace Descriptions

The SANI EDO-Max (often referred to as Endo Max) is a cordless endodontic motor equipped with an integrated apex locator and a 6:1 reduction contra-angle handpiece designed for root canal preparations.

Key Features & Specifications :Brushless Motor Technology: Provides smooth, quiet operation with stable torque delivery and extended motor lifespan.

6:1 Reduction Contra-Angle Handpiece: Offers precise speed control at lower RPMs and better tactile sensitivity during file manipulation. The mini-head design allows enhanced visibility in hard-to-reach posterior areas.

Integrated Apex Locator: Features real-time working length determination that works simultaneously during root canal shaping or independently as a standalone apex locator.

360° Rotatable Handpiece: Allows full orientation adjustment for convenient access to different quadrants of the oral cavity.

Performance & Operation Modes :

Speed Range: Adjustable from 100 RPM to 2,200 RPM.

Torque Control: Ranging from 0.5 Ncm to 4.2 Ncm with automatic torque reverse and auto-stop safety functions to prevent file separation inside the canal.

Working Modes:

Combined Endo Motor + Apex Locator mode

Standalone Endo Motor mode .Standalone Apex Locator mode

Rotation Angles: Supports continuous rotation (clockwise/counter-clockwise) and customizable reciprocating modes for various NiTi file systems.

Hardware & Ergonomics :Display: Bright OLED screen displaying speed, torque, direction, battery status, and apex position in real-time.

Power & Battery: Built-in high-capacity rechargeable battery charged via a wireless/micro-USB charging dock.

Hygiene: The 6:1 contra-angle handpiece head is fully autoclavable up to 134°C.

Lithium Battary :3.7 ~ 1900mAh
